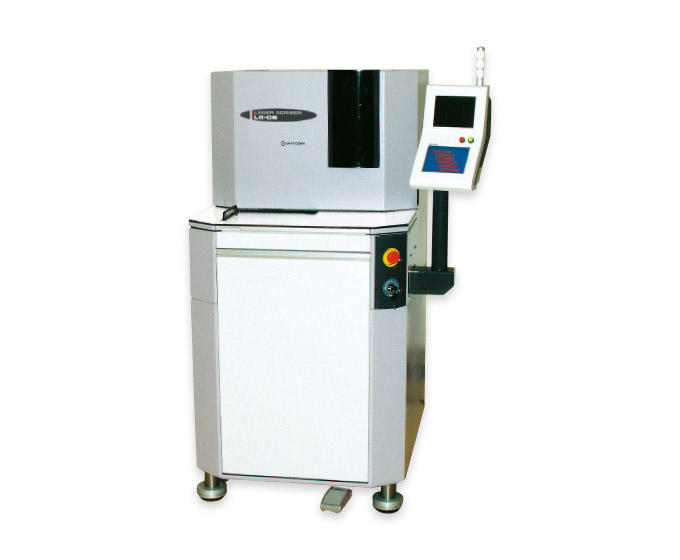

LS-08 series
- Ceramic Substrate (After baking)/Green Sheet/Laminated Material, etc.
- Realizing an ultra-compact machine
- Conserve installation space of 0.56m2
- Lightening of 650kg.(The installation on the second floor or more in the building is possible.)
- High accurate scribing narrow ditch
- Ditch width: ※30μm Accuracy:±10μm(※It depends on the condition)
- Maintenance-free, low running cost
Characteristics
- The ultra compact all-in-one design and easy installation
- The installation area is 0.56m2 with the width of 700mm and the depth of 800mm.
Realizing space-saving installation and easy transfer.
Lightening of 650kg. (The installation on the second floor or more in the building is possible.) - High accurate scribing narrow ditch
- A highly accurate XY stage adopted with the real scale is installed. A single optical system can condense the laser light into a minute spot.
- Corresponding to two sided scribing
- By installing the under camera unit (OP.), image processing on the both sides scribing is possible to correspond on the same alignment mark.
- The fiber laser of complete air-cooling is installed.
- High stability, maintenance-free The low running cost is achieved without incidental equipment.
- Accommodating automation (OP.)
- Safety
- Class-1 laser product in compliance with JIS
Standard Specifications

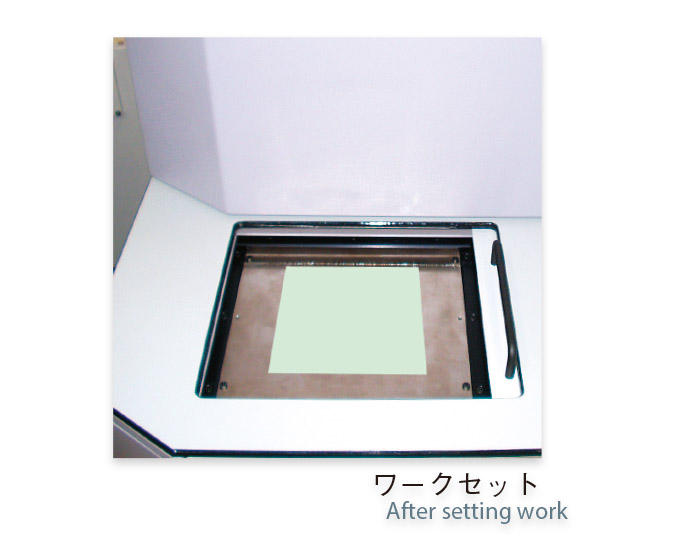

| Model name | LS-08(Single Type) | ||
|---|---|---|---|
| Work | Material | Ceramic Substrate(After baking)/Green Sheet/Laminated Material etc. | |
| Scribing area | Max.□200mm(The rectangle work is possible.) | ||
| Thickness | Max.5.0mm | ||
| Capability | Scribing accuracy | ±10μm(Image processing accuracy is included.) | |
| Laser unit | Laser oscillator | Yb：Fiber laser | |
| Wave length | 1,060nm | ||
| Average output | 18W(Laser head launching part) | ||
| Optical unit | Method | Single optical system | |
| Condenser | f 50 | ||
| Processing speed | Ditch processing: Max. 500mm, (Dot processing: Max. 25pore/s) | ||
| Optical system of observation | Observation as the same axis in the laser light | ||
| Camera view | 1.3×1.0mm | ||
| Lighting installation | Halogen lighting | ||
| Z axis | Automatic focus adjustment of optical unit by work thickness setting | ||
| Image processing | Method | Centering by binary-coded / Pattern matching | |
| Image processing camera | one | ||
| Camera view | 1.2×0.9mm | ||
| Lighting | LED ring lighting(standard: red) | ||
| Control | Control unit | Special controller made of UHT | |
| Operation | Operated by 6.5 inch color liquid crystal touch panel | ||
| Data editing | By ineractive software on PC (Separation from main body) | ||
| Network | Transmission of machining data from PC to the machine through LAN, centralized monitoring of the machine (up to 8 units on PC) | ||
| Dust collector(outer installation) | From the upper side | ||
| Dust proof measures | Air purging type in optical unit, The protection glass for lens condenser, Each axis cover | ||
| Safety device | Safety cover, Key switch, Safety interlock | ||
| Laser Display light | LED:2colors | ||
| Laser class | Class-1 laser product in compliance with JIS | ||
| Power source | 3φ AC200V ±10% 1.5kVA | ||
| Air source | 0.4～0.7MPa(Clear air) | ||
| Machine | Size | W700×D800×H1400mm | |
| Weight | 650Kg | ||
| Working condition | Temperature | 10～35℃(22±2℃ recommended) | |
| Humidity | 40～60%(Non-dewing) | ||
Options
- Adjustment table
- Under camera unit ※The corresponded mark size and the mark position are limited
- Image processing specification
- Laser output measurment function
- Power box

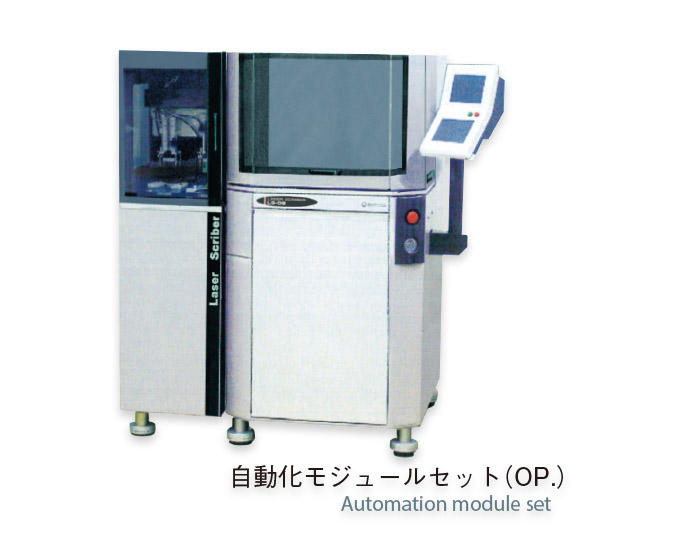

- Automation module
- Management PC＋LS MANAGE

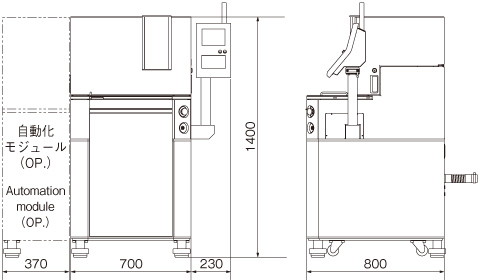

Outline Drawing
Example of floor layout
