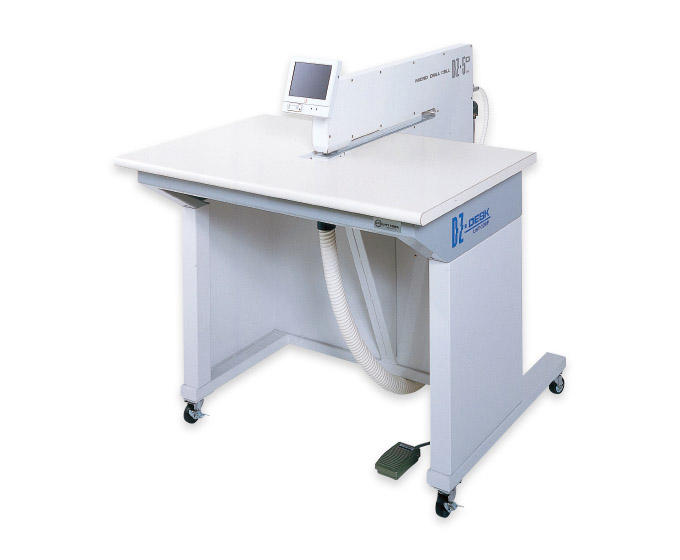

DZ-DESK series
- Advanced Desk Type Machine with a Large-sized Monitoring LCD.
Characteristics
- Easy to operate requiring no skill owing to the image processing type center detection and the 5.5-inch monitoring LCD.
- High-speed processing taking only 0.9 sec from image processing to through-hole drilling.
- Possible processing area of Max.W600×D500mm and thickness of 0.5-2.0mm.
- Simple, space-saving and compact design owing to the DZ cell.
Specifications
| Max.Working Area | W600×D500mm | |
|---|---|---|
| Work Thickness | 0.5〜2.0mm | |
| Max.Spindle Speed | 50,000rpm | |
| Drilling Capacity | φ1.0～φ3.2mm(コレット径1/8") | |
| Drilling Accuracy | X-axis ±25μm Y-axis ±25μm | |
| Drilling Time | 0.9秒/孔 | |
| Display | 5.5inch TFT LCD | |
| Center Searching Machanisim | Complex Image Processing Machanism | |
| Target Mark SIze | φ0.6〜φ3.0mm | |
| Range of View | Standard View 5×4mm Digitized View 4.5×3.5mm | |
| Power Supply | AC100V〜240V 150VA | |
| Air | 0.5Mpa 100NL/min | |
| Weight | 60kg | |
| Overall Dimension | W900×D1075×H748mm | |
| Dust Cleaner | Overall Dimension | W380×D500×H700mm |
| Weight | 43kg | |
Outline Drawing
Accessories
| name | amount |
|---|---|
| Remote Controller | 1 |
| AAA size battery (for Remote Control) | 2 |
| Pin Spanner Set | 1 |
| Spindle | 1 |
