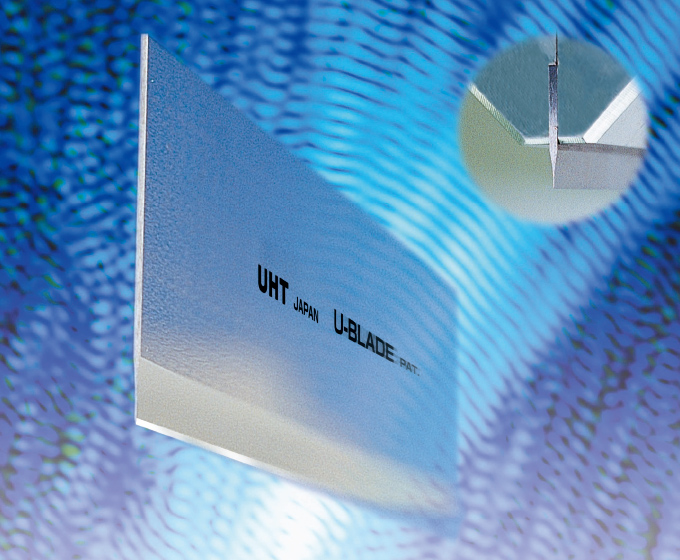

U-BLADE
- Cutting blade for G-CUT
- U-BLADE
- The machine materializes fine and high quality cutting
Characteristics
- UHT step blade enables fine cutting.
- This machine enables fine cutting using thin blade, which was impossible to be realized before.
- Straightness of top blade movement is improved.（double step blade）
- RRigid surface reduces blade trembling while processing, which improves straightness of blade top movement.
- Cutting resistance is reduced.
- Setting the direction of cutting and grinding the same, using a very thin blade, and adjusting the edge angle enables sharp cutting with less cutting resistance.
- Blade top is rarely chipped while operation.
- Thick and very rigid body is hard to be warped while operation, so that the blade top is rarely chipped.
- Durability of the blade is improved.
- High rigidity structure enables high quality cutting for long time, and drastically reduces blade replacement frequency.

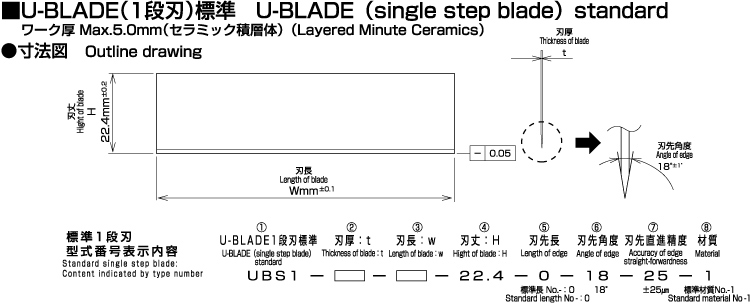

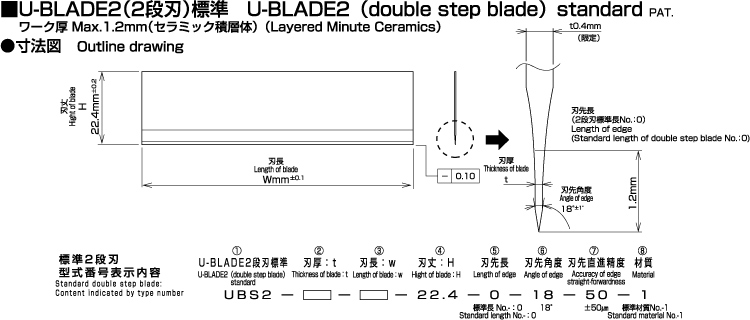

Outline Drawing
