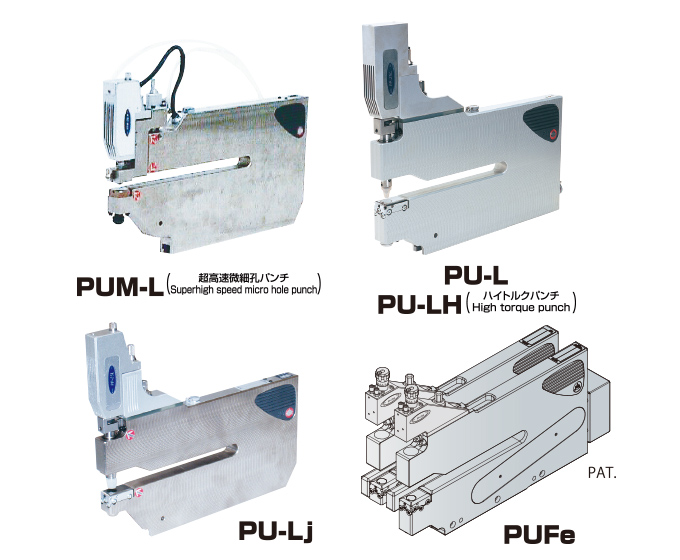

PU-L series
- PU-25L06S / PU-25Lj06S
PU-25LH06S / PUM-25Lp&j06N / PU-25L08S / PU-25Lj08S
PU-25LH08S / PUM-25Lp&j08N / PU-25L10S / PU-25LH10S
PU-25Lj10S /
- Original actuator is installed on this high speed micro hole punching unit.
Characteristics
- High quality micro hole punching
- Small vibration punching controlled by the original method materializes high quality micro hole punching.
- High speed actuator punching
- Small vibration and quiet punching
- This small vibration machine prolongs die life span.
- Common use
- Punch, die and plunger is commonly used with the air type machine.
Standard specifications
| Model | PU-25L06S PU-25Lj06S PU-25LH06S PUM-25Lp&j06N | PU-25L08S PU-25Lj08S PU-25LH08S PUM-25Lp&j08N | PU-25L10S PU-25LH10S PU-25Lj10S PUM-25Lp&j10N | PUFe-25L06S PUFe-25Lj06S | PUFe-25L08S PUFe-25Lj08S | PUT-50L13S PUT-50Lj13S | PUT-50L18S PUT-50Lj18S | ||
|---|---|---|---|---|---|---|---|---|---|
| The number of punching axis | 1 axis | 1 axis plural units | 2 axes | ||||||
| Applicable Work | Ceramics Green sheet, Pet film, Polyimide film. | ||||||||
| Work maching area(Max.) | 150mm | 200mm | 250mm | 150mm | 200mm | 325mm | 450mm | ||
| Punching | speed(example) | Max.1800hole／min（PUM-L）, Max.1000hole／min（PU-L／Lj）, Max.600hole／min（PU-LH） Depending on a in-serve model |
|||||||
| capability(Max.) | PU-L ： 40N(1 axis)PUM-L ：30N(1 axis) PU-LH ： 100N(1 axis) | ||||||||
| diameter | φ50～500μm(Depending on a work) PUM-L ： φ30～500μm | ||||||||
| In-serve machine | MP-□150Z MP-□150 APP MP-12150L HP-12150L |
MP-□200Z MP-W8 APP MP-12200L HP-12200L |
FP-1210L | MP-□150Z | MP-□200Z | FP-1213 | FP-1018 | ||
| Revision of software and additional improvement of power supply is required. | |||||||||
| Driving force | DC24V 3A以下 | ||||||||
| Unit size | H | 170 | 204 | 204 | 170 | 204 | 234 | 275 | |
| D | 331 | 411 | 475 | 337.5 | 457.5 | 575 | 725 | ||
| W | 24 | 24 | 24 | 99 | 99 | 48 | 48 | ||

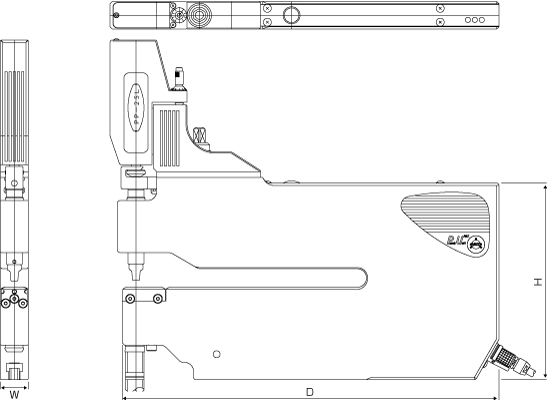

Outline Drawing
