Hybrid puncher

HP-L series

Printed substrates,ceramic substrates,organic substrates,rigid flexible substrates and so on
HP-12150L / HP-12200L
  • Hybrid puncher
Hybrid puncher
A high performance unit enabled loading punching, drilling and routing unit at the same time.
Offers super-high speed besides a low vibration and silence.(linear motor drive)

Characteristics

By compound processing,high efficiency and high accuracy is realized.
Arrangements can be omitted by processing the each stage of work at the same time and making work highly effective is achieved.
Offers a highly accurate setting positions by omitting programs.
The initial running cost is decreased by die-less and generalizing punches.

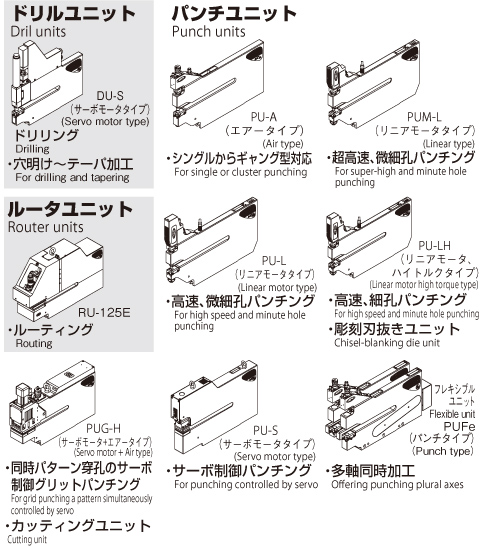

Easy setting of the unit and tool
Various units and various tools can be easily set according to the processing pattern and the condition.
Wide selection from trial production to medium mass production
This is available to trial production,many varieties small lot and medium mass production according to combination of main modules and various loaders.

Standard Specifications

Model nameMP-12150LMP-12200L
WorkMaterial Ceramic green sheet,etc.and work like sheet.
Thickness Max 0.5mm
Size/Sheet Max □175mm
(RRC:□180mm)
Max □225mm
RC:□250mm
Working area Max □150mm Max □200mm
How to attach Supply : Sheet : Standard work holder, Vacuum frame
Roll : Vacuum frame
Punch unit(OP.)Number of installing (in the PU-25 size) 12axes
CapabilityMachining Accuracy ±10μm(Between 2 points in 1'' punched on standard UHT's test film)
Machining Speed By PUM-25L :Max1500hole/min
By PU-25L :Max1000hole/min
By PU-25A :Max 600hole/min
NC punch with 1mm pitch in Y direction standard V/H work holder
SystemDrive method XYaxis linear motor
Control functionControl UHT made MJUC controller
Operation 6.5" color LCD touch panel
Punch data Software on PC (independent of the main body)
Number of processing data memories 1 file : Max. 30000 positions
Network Transmission of machining data from PC to the machine through LAN.
Centralized monitoring the machine operating condition (up to 4 units) on PC
Image Processing method Image data processing is executed by the image processing function with CCD only made of UHT.
Power source 3φ AC200V ±10% 3kVA
Air source 0.4~0.7 MPa
Machine size (Body)W 1170mm 1220mm
D 1070mm 1200mm
H 1400mm 1400mm
Machine weight (Body) Approx. 1000kg Approx. 1250kg
Working conditionTemperature 10℃~35℃ (22℃±2℃ recommended)
Humidity 40~60%(Non-dewing)

Options

  • Punch setter
  • Data conversion software from CAD
  • Booster tank
  • Metal mold(Punch, Die)
  • PC
  • Punch units
  • Power box
  • Punch break detecting software

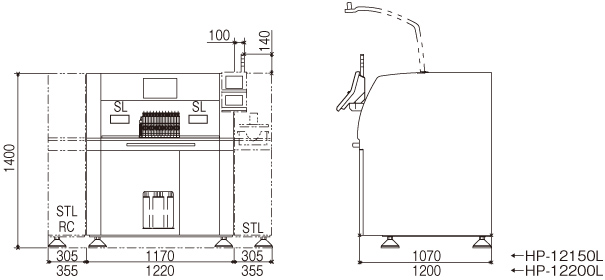

Outline Drawing
