Laser Scriber Scan Type

LS-S208 series

Ceramic Substrate (After baking)/Green Sheet/Laminated Material etc.
  • Laser Scriber Scan Type
  • Laser Scriber Scan Type

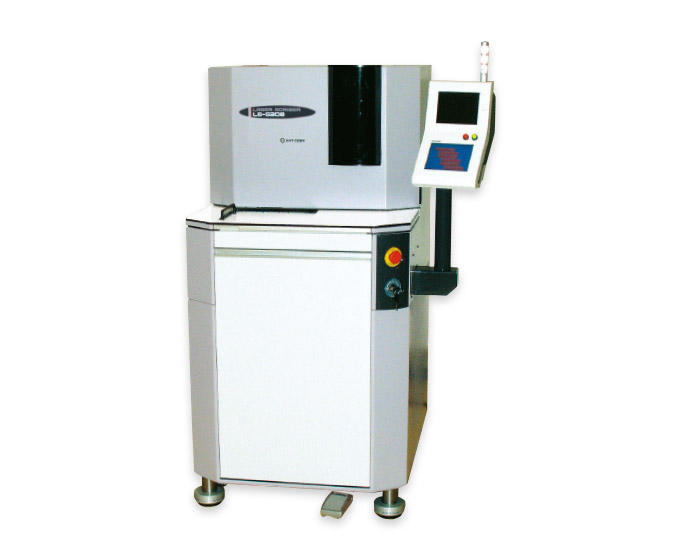

Laser Scriber Scan Type Laser Scriber Scan Type
Realizing an ultra-compact machine
Conserve installation space of 0.56m2
Lightening of 650kg.(The installation on the second floor or more in the building is possible.)
High speed and high accurate scribing
Speed:500mm/s Accuracy:±20μm
Maintenance-free, low running cost

Characteristics

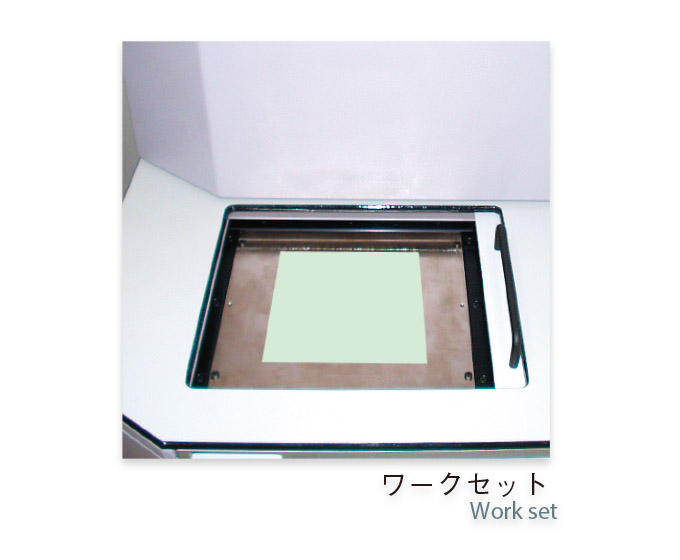

The ultra compact all-in-one design and easy installation
The installation area is 0.56m2 with the width of 700mm and the depth of 800mm.
Realizing space-saving installation and easy transfer.
Lightening of 650kg. (The installation on the second floor or more in the building is possible.)
A high-speed processing with the galvanometer scanner is achieved.
Scanning area : □50mm
Max. processing area by synchronization with X and Y stages: □200mm
Variegated scribing functions
Highly accurate scribing by image processing Straight lines, irregular shapes and circular-arc shapes can be scribed by a dot and a continuous ditch processing.
The fiber laser unit of complete air-cooling is installed.
High stability, maintenance-free The low running cost is achieved without incidental equipment.
Accommodating automation (OP.)
Safety
Class-1 laser product in compliance with JIS

Standard Specifications

Model nameCeramic Substrate(After baking)/Green Sheet/Laminated Material etc.
WorkMaterial Ceramic Substrate(After baking)/Green Sheet/Laminated Material etc.
Scribing area Max.□200mm(The rectangle work is possible.)
Thickness Max.5.0mm
CapabilityPositioning accuracy(XY axis) ±10μm
Scribing accuracy ±20μm(Image processing accuracy is included.)
Laser unitOscillator Yb:Fiber laser
Wave length 1,060nm
Average output 18W (Laser head launching part)
Optical unitMethod Optical system of scanning (galvanometer type)
Scanning area Max.□50mm
Scanning processing speed Dot processing: Max. 500pore/s, Ditch processing: Max. 500mm/s
Optical system of observation Observation as the same axis in the laser light
Camera view 6.7×5.0mm
Lighting installation Halogen lighting
Z axis Automatic focus adjustment of optical unit by work thickness setting
Image processingMethod Centering by binary-coded / Pattern matching
Image processing camera Two (The processing area is made a center, and they are set up right and left.)
Camera view 3.2×2.4mm
Lighting LED ring lighting(standard: green)
ControlControl unit Special controller made of UHT
Operation Operated by 6.5 inch color liquid crystal touch panel
Data editing By ineractive software on PC (Separation from main body)
Network Transmission of machining data from PC to the machine through LAN, centralized monitoring of the machine (up to 8 units on PC)
Dust collector From the upper side
Dust proof measures Air purging type in optical unit, fθ, The protection glass for lens
Safety device Safety cover, Key switch, Safety interlock
Display lightLaser Green: on excitation, Red: on irradiation
Laser class Class-1 laser product in compliance with IEC
Power source 3φ AC200V ±10% 1.5kVA
Air source 0.4~0.7MPa(Clear air)
MachineSize W700×D800×H1400
Weight 650Kg
Working conditionTemperature 10~35℃(22±2℃ recommended)
Humidity 40~60%(Non-dewing)

Options

  • Adjustment table
  • Automation module
  • Image processing specification
  • Management PC software
  • Laser output measurment function
  • Power box for PC

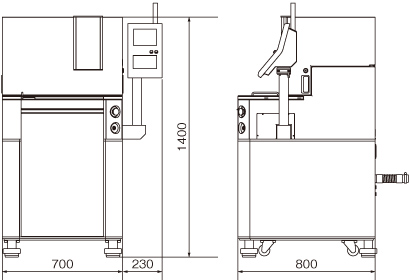

Outline Drawing


Example of floor layout
