Pilot hole punching machine
Industrial processing equipmentトップreference Punching machine for exible substrates.

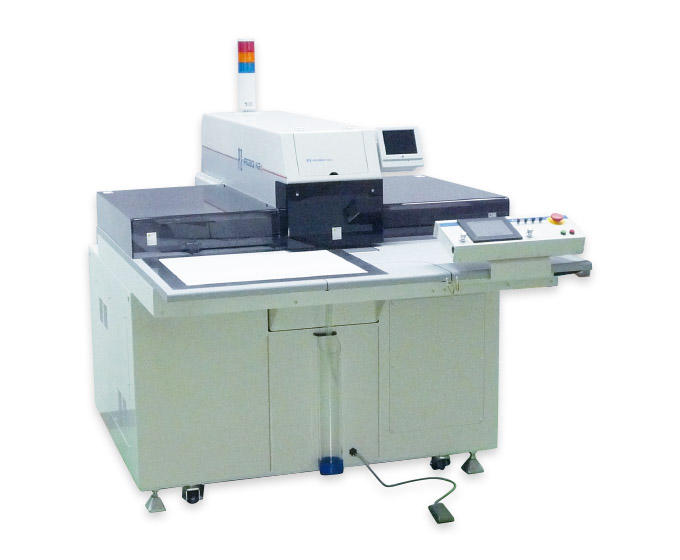

PZ-ROBO N2 series
- Target materi：alFlexible substrates, laminated exible substrates and nameplates
- PZ-ROBO N2 / PZ-ROBO N2g
- PZ-ROBO N2 2000 / PZ-ROBO N2g 2000
- Applicable to large sheets of work
- High speed, high accuracy
- 130 holes/min,±20μm
- Simple shape designed in emphasis on the ease of work
- Teaching mechanism makes positioning operation much easier
Characteristics
- A maximum of 600x500mm, large-sized, exible substrate can be punched
- Achieved highly accurate processing

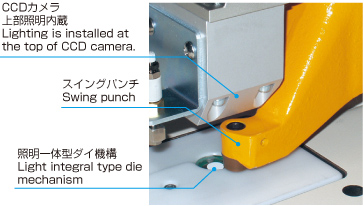

- ・A three-dimensional cam with results ensures quiet and smooth punching.
・Top lighting(three di erent colors) and lower lighting are available to deal with clear picture processing of various colors of work and/or patterns.
- Installing of the teaching mechanism
- Positions to punch can be taught using a teaching dial instead of entering the coordinates. The storage capacity of the position data is 100 channels, each equivalent to 1000 positions. The position data can be stored in memory card.

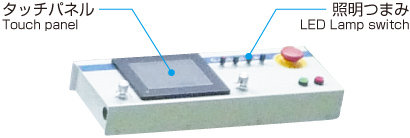

- Easy-to-use interface
- Touch panel and operation switch provide comfortable working environment for operators.
Standard Specifications
| Model name | PZ-ROBO N2 | PZ-ROBO N2g | PZ-ROBO N2 2000 | PZ-ROBO N2g 2000 | |
|---|---|---|---|---|---|
| Work | Applicable materials | Flexible substrates, laminated flexible substrates and nameplates | |||
| Max Work thickness | Max.1.0mm (depending on a punch diameter & a material) | ||||
| Max Working area | Max.X600×Y500mm | ||||
| Die | Punched hole diameter | φ0.6～6.0mm(Optional Max.φ6.49) | |||
| Capability | Punching Accuracy | ±20μm | |||
| Punching speed | 130holes/min.(At image processing during movement in 20mm pitches.Varies according to the punching and material conditions) | ||||
| Punching power | Max.1100N | Max.2000N | |||
| Image processing | Display | 5.5 inch TFT LCD | |||
| Target Mark Size | φ0.6～3.0mm | ||||
| Searching Mechanism | Centering by binary-coded | ||||
| Pattern matting | Pattern matting | ||||
| Range of View | Standard View 5.0×4.0mm Digitized View 4.5×3.5mm | ||||
| Illumination | LED, 3 colors from upper side, 1 color from underneath | ||||
| Control | Control unit | special controller made of UHT | |||
| Operation | Touch panel and operation switch | ||||
| Programming method | Teaching playback method | ||||
| Programming capacity | 100 channels(1000 holes/channel)Internal memory,Memory card | ||||
| Storage | P/C(OP.) | ||||
| Ediiting feature | Delete,Copy,Modify,Offset of work origin,Repeating | ||||
| Power source | 3φ AC200V ±10% 1.0kVA | ||||
| Air Pressure source | 0.5MPa(Clean air) | ||||
| Dimension | W1330×D1760×H1285mm | ||||
| Weight | Approx.500Kg | ||||
| Working condition | Temperature | 10～35℃(22±2℃ recommended) | |||
| Humidity | 40～60%(Non-bedewing) | ||||
Options
- PC for data storage
- Metal mold
Outline Drawing
Accessories
| name | amount |
|---|---|
| ①Hexagonal Wrench Set(3types) | 1 |
| ②Punch・Die Replace Tool | 1 |
| ③Punch、Die、 Stripper | each 1 |
Optional
- Punches(one set five punches)
- Dies(one set five dies)
- Strippers(one set five strippers)
