Pilot hole punching machine
Industrial processing equipmentトップAutomatic Guide-Hole Drilling machine
DZ-ROBOⅡ56EL series
- One side and two sided printed substrate
- It is possible to carry the image processing type of two drilling cells.
- High accuracy, high productivity machine.
- Easy programming by teaching method
- The electric spindle correspondence, and it is conservation of energy, and low noise.
Characteristics
- Processing with two drill cells simultaneously.
- Productivity improves greatly by two axes in the corner processing simultaneously.(The standard is equipped with one. When the option is used, it is possible to equip with two.)
- Highly accurate processing by picture processing.
- Various mark patterns are corresponding high accuracy and adopts by the image processing and gray search (OP.) by binarization.
- The processing program operates it by the original teaching method easily.
-

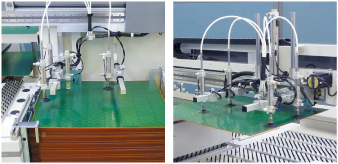

Two cells Image processing Completed automation Productivity is doubled by two axes holing the open processing simultaneously.(The standard is equipped with one. When the option is used, it is possible to equip with two.) High accuracy hole opening by the image processing. Raises the automatic loader and unloader work efficiency is installed. As for the loader loading amount, MAX500mm. It is completed automation by new establishment of NG Stocca. Level cart.(OP.)
Standard Specifications
| Model name | DZ－ROBOⅡ56EL | |
|---|---|---|
| usage | Guide hole opening | |
| Work | Material | One side and two sided printed substrate |
| Size | Max．W610×D510mm Min．W300×D250mm |
|
| Thickness | Standard t1.6 mm | |
| Drilling area | Max.W610×D510mm Min.W300×D250mm Except 20×W60mm range from end side of the finger clamp part |
|
| Fixed method | Finger clamping method | |
| Processing speed | 13sec/4 hole processing (cycle time including loading)(Two DZ cells processing simultaneously and axis movement pitch 250mm time) | |
| DZ(drill)cell | Equipped with one DZ-8E(It is possible to equip with two by option.) | |
| Capability | Drilling accuracy | XY axis ±25μm |
| Drilling speed | 1.2 sec/holes (Image processing～drilling that depends on the standard work-sheet of our company) | |
| Holing open ability | φ1.0～φ3.2 mm (1/8"collet) | |
| Rotational speed of main axis | Max. 50000rpm | |
| Image processing | Display | 2.5インチLCD |
| Mark size | φ0.6～φ3.0mm | |
| Method | Center of gravity search by binarization（Pattern matching by gray processing(OP.)) | |
| Range of view | Standard view.5×4mm Digitized view.4.5×3.5mm | |
| Illumination | LED | |
| Loader and unloader | Height of work loading | Max. 500mm |
| Loading From | Level cart (op) | |
| Error processing | When image processing makes an error, work carrying out to NG stocca. | |
| Operation | Main body is operated by the liquid crystal touch panel and DZ cell is operated by the remote control | |
| Data | Punch data | Teaching input |
| Preservation | Controller internal and capacitor backup(For one week.) And, it preserves it to the personal computer by the data transfer. | |
| Memory capacity | They are ten channels in 1000 position/channel. | |
| Safety device | Safety cover(OP.) | |
| Power Supply | main body：3φ AC200V ±10％ 1kVA DZ cell：1φ AC85～240V 200VA |
|
| Air Supply | 0.5MPa(clean air) | |
| Machine size | W2375mm×D1775mm×H1600mm | |
| Machine mass | Approx.500kg | |
| Working condition | Temperature | 10～35℃(22±2℃recommended) |
| Humidity | 40～60%(Non-dewing) | |
| Accessory | ・One infrared rays remote controller ・Electric micro spindle complete set ・Pin spanner complete set. |
|
Options
- One DZ cell (DZ-8E) is a standard.
- Level cart (MAX.200kg)
- Dust extractor (AC200V 1.9kw)
- Loader work pusher
- Safety cover
- Personal computer for data storage・Software
- Gray search

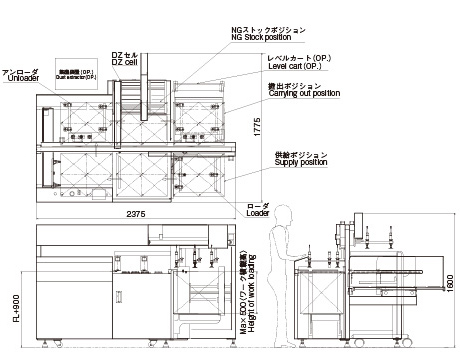

Outline Drawing
