Spindle No. 6
Main Specifications
| product name | Spindle No. 6 |
|---|---|
| Part number | 331 |
| Abrasives available | 専用100mm平砥石 専用100mmダイヤ/ボラゾンホイール |
| Max.number of revolutions | 8,000rpm |
| Gross weight | 1,400(g) |
| Package dimensions | 230×87×80(mm) |

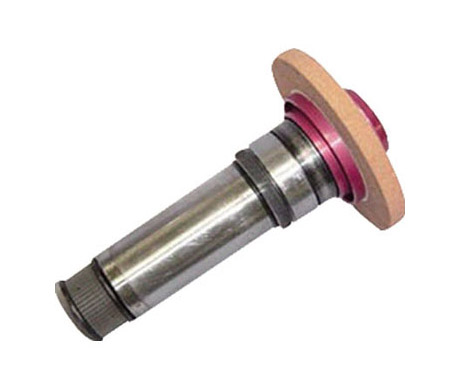

Spindle for the New GU-1.
Uses a grinding wheel clamped with a dedicated flange.
Good for external grinding.
Also capable of internal grinding of large diameter workpieces.
Note that deep internal grinding is not available as the spindle shaft being short.
Not includes the Flange, Flange Removal Jig, and the Wheel Cover.
Make sure to use the wheel cover.
